Key Takeaways
- In-house sheet metal fabrication with CNC bending, punching and welding
- Powder coating and surface treatment for durability and brand finish
- ISO-compliant quality control with CMM verification
GOLDPRIME GAME operates an in-house sheet metal workshop with CNC punching, bending, welding and powder coating — all under one roof. This vertical integration means faster prototyping, tighter quality control and single-point accountability for cabinet manufacturing.
Our Equipment
| Process | Equipment | Capacity |
|---|---|---|
| CNC Punching | Trumpf-style turret punch | 1500×2500mm sheet, up to 3mm |

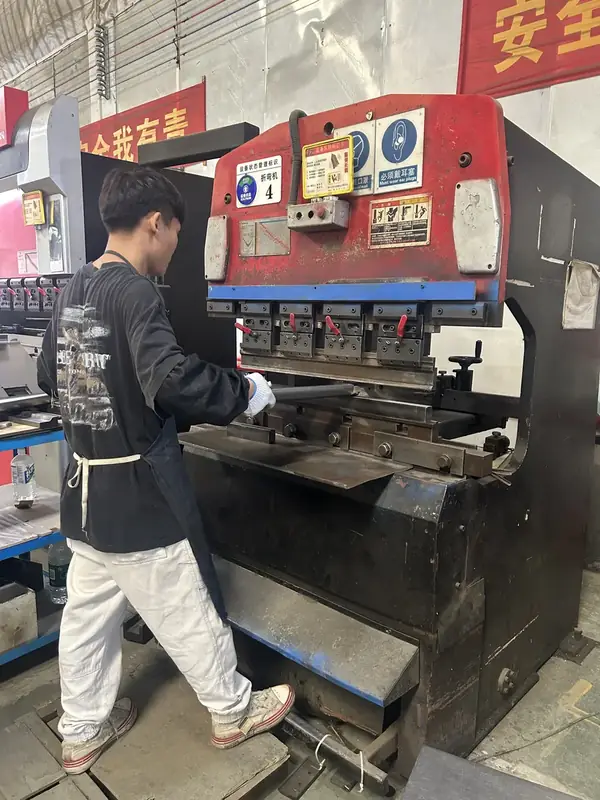

| CNC Bending | 6-axis press brakes | 3200mm bed, ±0.1mm accuracy |
| Welding | MIG/TIG/spot welding | Robotic + manual stations |
| Powder Coating | Electrostatic line | 6000×1500×1500mm max part |
| CMM Inspection | Coordinate measuring machine | Full dimensional verification |
Quality Control
Every cabinet batch goes through multi-point QC:
- Incoming material inspection — gauge, flatness, surface quality
- In-process checks — bend angle, hole position, weld integrity (every 50 units)
- Post-coating inspection — adhesion test, thickness gauge, color match
- Final assembly fit-check — door alignment, panel gaps, fastener torque
Lead Times
| Volume | Sheet Metal Lead Time |
|---|---|
| Prototype (1-5 units) | 5-7 working days |
| Small batch (5-50) | 10-14 working days |
| Production (50-200) | 18-25 working days |
| Bulk (200+) | 30-40 working days |
Combined with our [[Capabilities|full manufacturing stack]], sheet metal integrates directly with electronics assembly and final QC — no handoff delays.
Frequently Asked Questions
What materials do you work with?
Primarily cold-rolled steel (SPCC/SECC), stainless steel (SUS304) and aluminum alloys for cabinet frames, door panels and internal brackets.
What gauge thickness do you use for cabinets?
Typical cabinet frames use 1.5–2.0mm CRS; door panels and decorative trims range from 1.0–1.5mm. Thicker gauges available for reinforced enclosures.
Can you match a specific RAL or Pantone color?
Yes. Our powder coating line supports custom RAL/Pantone matching for brand-consistent cabinet finishes.
Do you offer custom cabinet dimensions?
OEM/ODM cabinets can be designed to your footprint requirements. We work from CAD files or your dimensional specifications.
